Transparent Inspection Device

A useful tool for the inspection and transportation of Rays and small Sharks.
black tipped reef shark

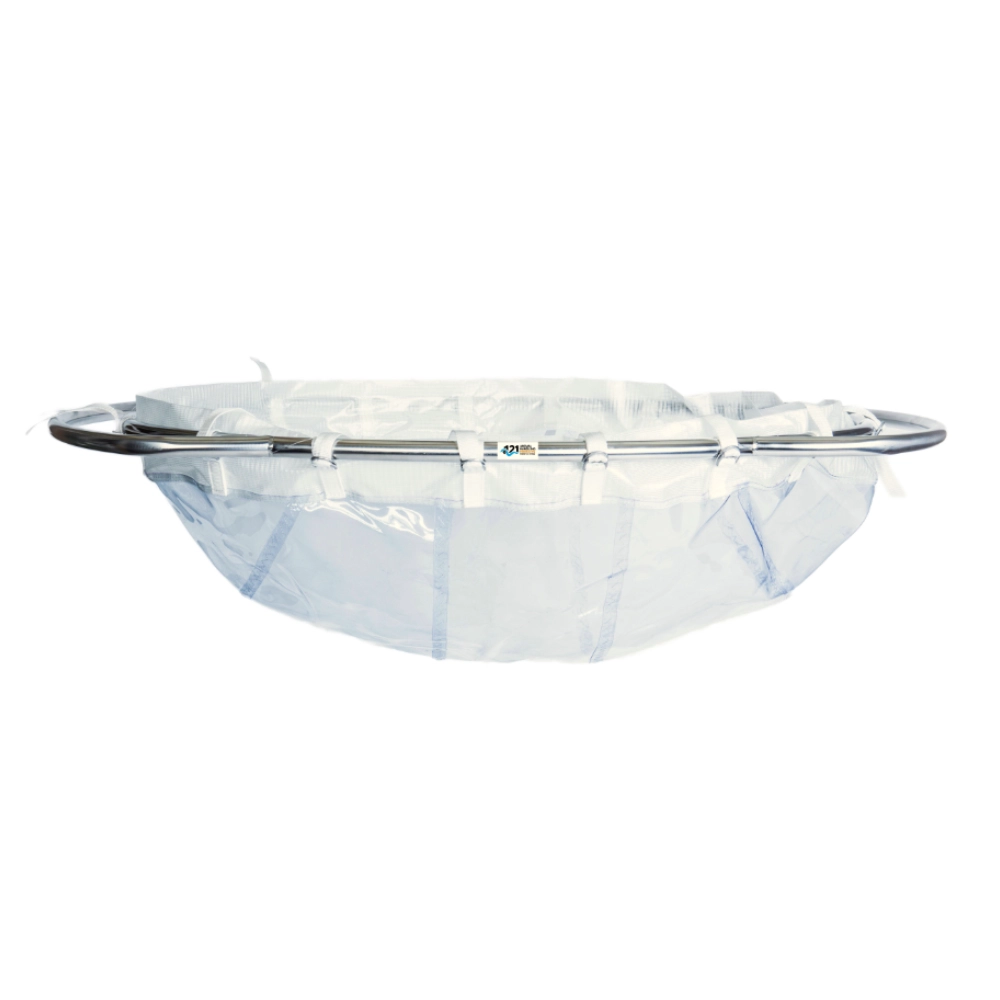

transparent inspection device 1

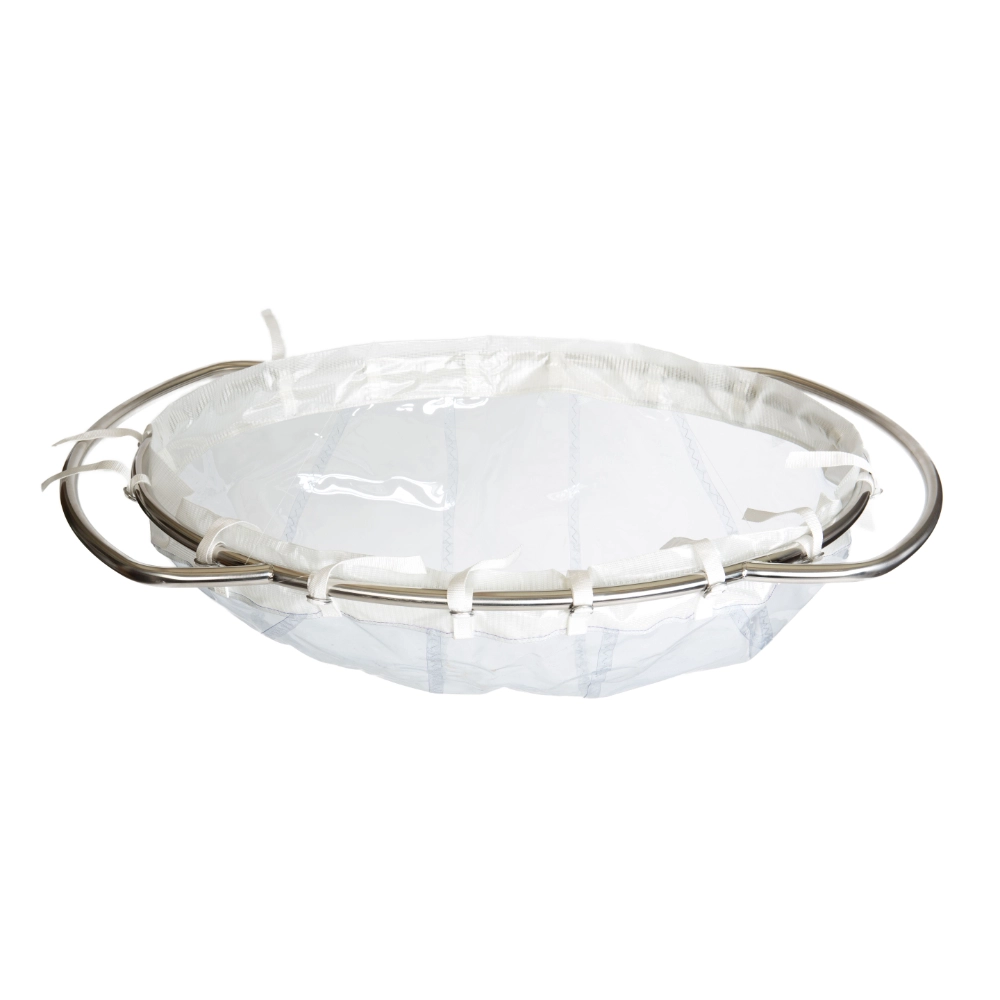

transparent inspection device 2

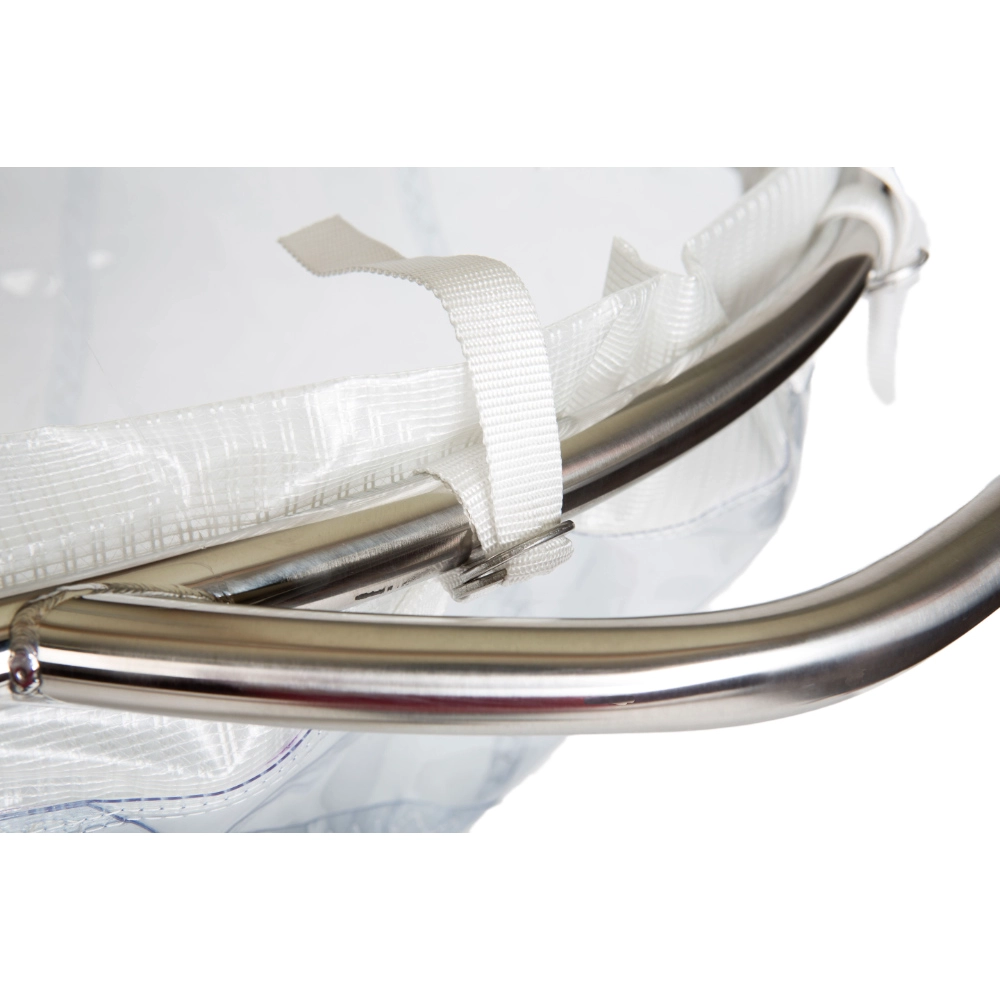

transparent inspection device 3

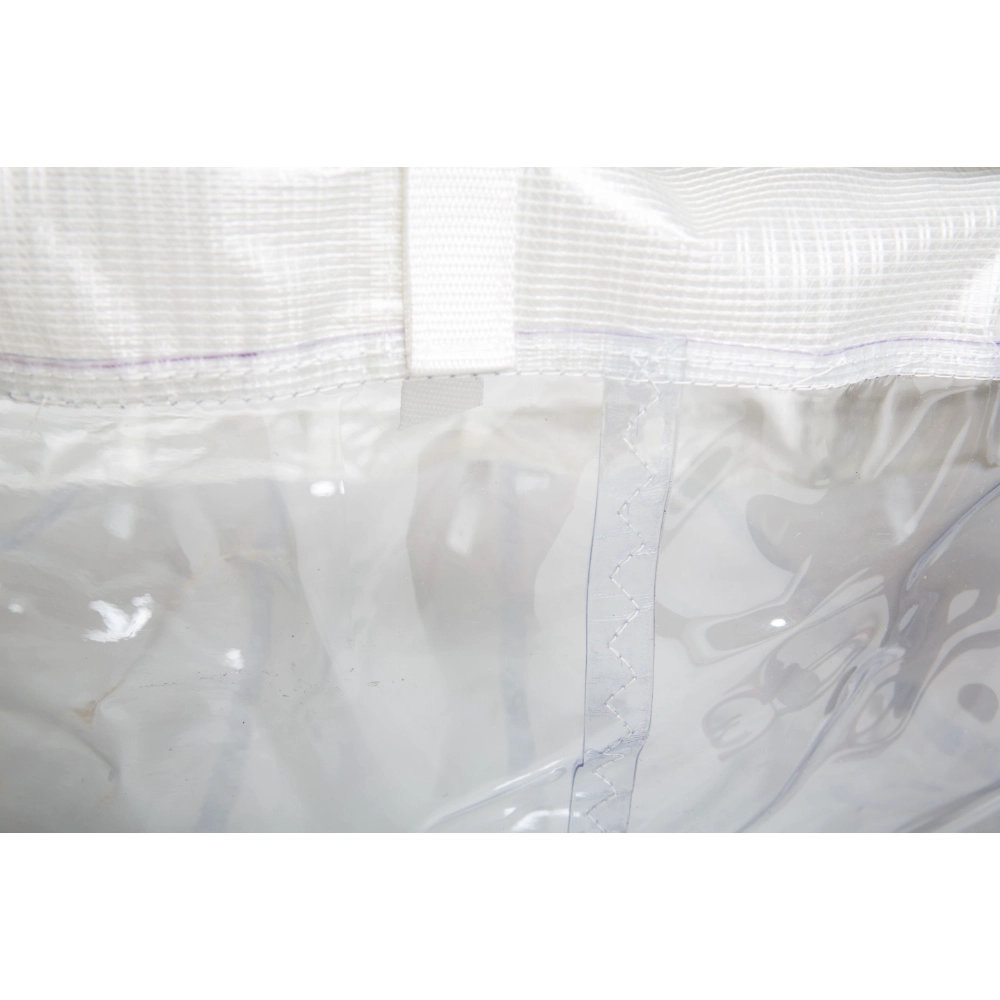

transparent inspection device 4
  • transparent inspection device 1
  • transparent inspection device 2
  • transparent inspection device 3
  • transparent inspection device 4

About The Transparent Inspection Device

This useful tool is based on the design of our Ray Tray.

It allows ease of inspecting the ventral side of rays and small sharks while still allowing the animal to be submerged in water.

It also allows for movement of the most sensitive medium sized rays and small sharks that would benefit from being in water during transfer from tank to tank.

The Bag is securely fastened to the Stainless Steel Ring by means of straps.

Available in the small Ray Tray size. Please enquire for large size.

Also included is a transparent cover to further increase security during transport or when diving and bringing an animal to the surface.

Plus a detachable sling with aluminium die cast cam buckles to weigh your animals whilst they are out of the tank.

1-2-1 products and devices should only be used by trained professionals.

Transparent Inspection Device Specifications

  • Oval shaped stainless steel ring.
  • Frame: 110cm x 90cm
  • Length between handles: 130cm.
  • Transparent bag.
  • Bag measuring 110cm length x 90cm width x 30cm depth with 15cm width PVC band.
  • Straps fitted with stainless steel D rings.
  • Polyproperlene hard weave 25mm.
  • Intended for small sized rays, small sized sharks or other small marine animals up to 60kg.
  • Weight: 7kg.
Disclaimer; the maximum weight loads given are only an estimate and should not be confused with Certified Weight Load Test data. If you would like your device to be officially weight load tested, then please enquire. We will then present you with our quotation for this service. Once the test has been completed, there will be a certificate presented together with the carrier you have ordered.

Transparent Inspection Device Videos


Enquire

If you have any questions about our Transparent Inspection Device or would like to discuss your specific requirements, don’t hesitate to get in touch.
